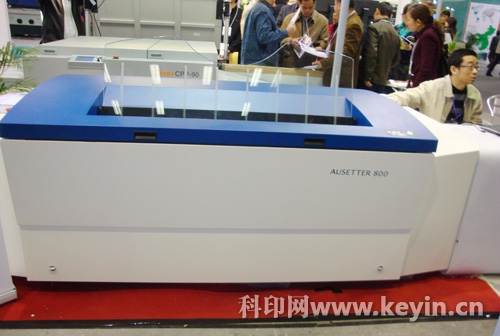

The 17th South China International Printing Exhibition has just dropped the curtain, on which Amsky Company made its debut of the latest CTP product--- CtPS Ausetter 800, Digital Plate-making Machines for Traditional Plates, possessing wonderful features, such as direct output of traditional PS, dynamic automatic focusing, low cost, high speed and quality and so on. It was quite a catch on the exhibition as soon as it was displayed. Next, let’s come to unveil the myth of CtPS Ausetter800 and explore its technical features.
Utilizing Traditional Plates
Plates cost is tremendously cut down by utilizing traditional PS plates to expose directly.
Mature and reliable 32-64 channels; Discrete 405nm laser diode technology.
Extremely clear and sharp screen dots can be exposed; Resistance rate is high and it’s operated in light room; Service life extends as long as tens of thousands of hours; Replacement is economic and convenient.
Dynamic and Automatic Focusing
Track in real time the variation of surface fluctuation and adjust the lens forwards or backwards to assure the distance between exposure dots and lens is unchangeable. Each laser spot is exposed at the best focal length to assure all the screen dots are accordant, clear and sharp.
Special Screen Dots Control Technology
Screen dots gain problems caused by size of laser spots are accurately compensated for so that 1%~ 99% grayscale gradients is perfectly presented.
Exposure Design with External Drum Style

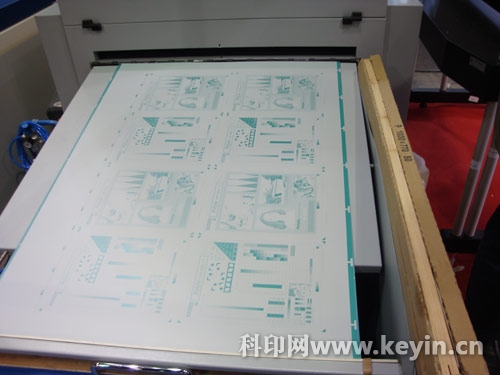

The printing plates are clamped and bent in the style closest to the press, high-quality and exactly accordant dots are exposed and printing formes are output at high speed up to 29 pages of 1030x800mm per hour.
Convenient Operation
High-speed USB2.0 interface makes Ausetter 800 have Plug and Play function like a desktop printer. The aided output management software (Tiff download) can realize seamless link with any mature workflow.
| Ausetter 800 Technology Specifications | |||
| Exposing Method | External Drum | ||
| Imaging System | 32-channel | 48-channel | 64-channel |
| Discrete 405nm laser diode | |||
| Throughput | 15 plates/hour | 21 plates/hour | 26 plates/hour |
| 1,030*800nm 2400dpi | |||
| Plate Size | Max. 1,130mmX900mm, min.400X300mm | ||
| Exposing Size | Max.1,130mmX884mm, min. 400mmX284mm | ||
| Plate Type | Traditional PS | ||
| Plate Thickness | 0.15mm to 0.3mm | ||
| Resolutions | 2400dpi | ||
| Repeatability | Continuous exposing for four times or above on the same plate with a temperature of 23℃ and relative humidity of 60%) | ||
| Interface | USB 2.0 | ||
| Plate Loading | Fron-end is manual, Automatic loading(standard) | ||
| Weight | 900kg | ||
| Size (W xDx H) | 2,530mmx1,050mmx950mm ( WxDxH ) | ||
| Power Supply | Single-phase: 220AC, +6%, -10%, Power Consumption: 4KW | ||
| Environment | Recommended: 21-25℃, Required: 18-26℃, Relative humidity: 40-70% | ||
